DALI DIM Function Microwave Occupancy Sensors DIP Switch Control

Name: DALI DIM Function Microwave Occupancy Sensors DIP Switch Control
Brand: HAISEN
Price: 1 USD

Brand Name : HAISEN

Model Number : HDD01

Certification : CE

Place of Origin : China

MOQ : 120pcs/ctn

Price : Negotiable

Payment Terms : D/A, D/P, T/T

Supply Ability : 1-10pcs Samples Within 2-3 Days; Bulk Order Within 28 Days

Delivery Time : Standard Models Within 3 Weeks

Packaging Details : Packed in Bubble Bag, Reinforced With Paper Flat, Then Packed With Outer Carton

Color : White

Control : DIP Switch

Function : DALI DIM

IP Grading : IP20

Product : Microwave Occupancy Sensors

Certifications : Microwave Occupancy Sensors

Contact Now

DALI DIM Function Microwave Occupancy Sensors DIP Switch Control

European Standard Dali Dim Sensor For Ceiling Bulkhead Use Dip Switch Control

Features

220-240VAC Input Sensor

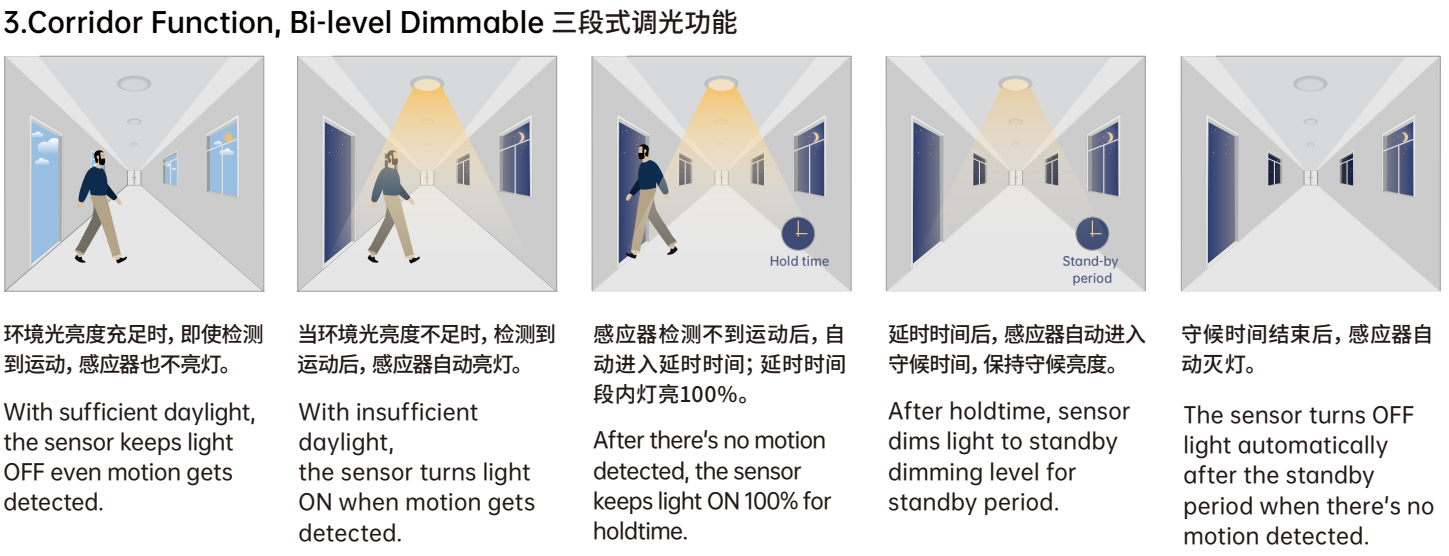

Bi-Level dimmable & Daylight Threshold
Suitable for Ceiling Light & Bulkhead
DIP Switch Setting

Technical Data

Operating Voltage	220-240VAC,50Hz/60Hz
Switching Capacity	Max.400W Control gear; Max.800W Incandescent lamp
Microwave Frequency	5.8GHz±75MHz
Stand-by power	≤1W
Control Method	DALI Dimming
Programming	DIP Switches
Detection Angle	150° Without Glass Cover
Detection Range	2.5-6m /8.2-19.68ft Ceiling Mounted
Mounting Height	Max.ø14m/45.93ft Ceiling Mounted
Detection Area	10%/50%/75%/100%
Hold Time	5s/30s/1min/5min/10min/20min/30min
Daylight Threshold	2Lux/10Lux/50Lux/Disable
Stand-by Period	0s/10s/1min/10min/30min/1H/+∞
Stand-by dimming	10%/20%/30%/50%
IP Rating	IP20
Operating Temperature	-20°C~+55°C
Warranty	5 Years

Size(mm)

DALI DIM Function Microwave Occupancy Sensors DIP Switch Control

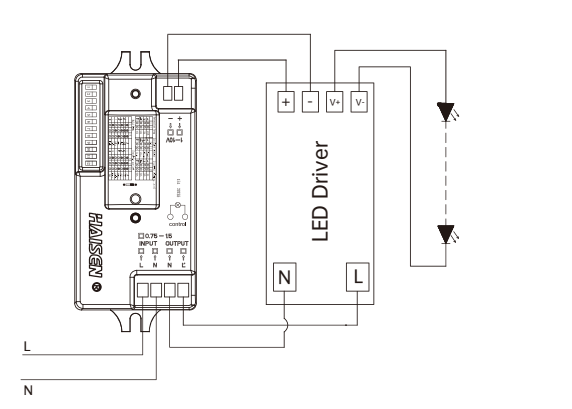

Wiring

DALI DIM Function Microwave Occupancy Sensors DIP Switch Control

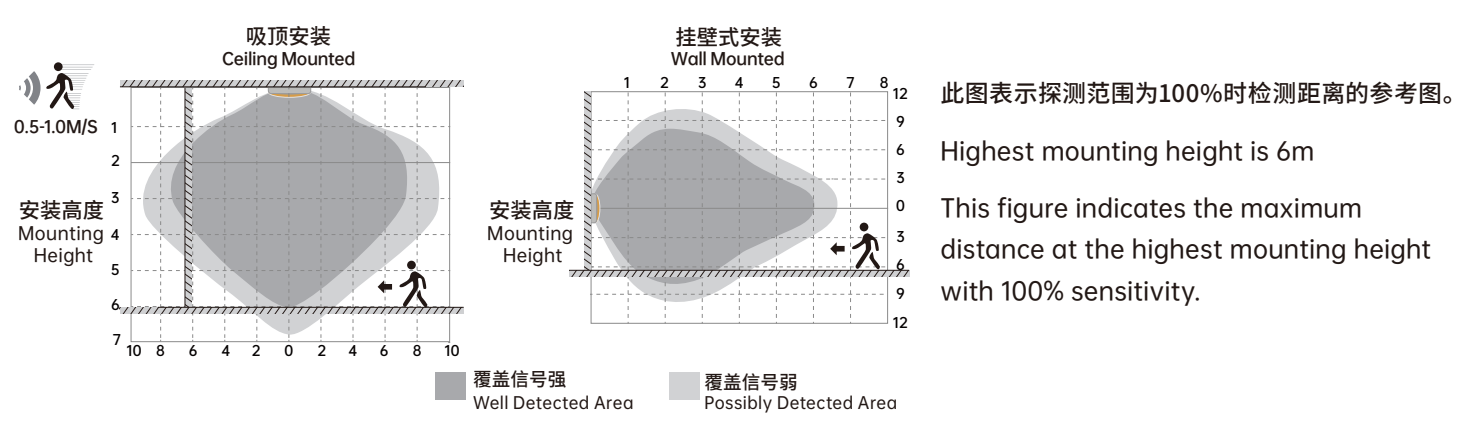

Detection Area

DALI DIM Function Microwave Occupancy Sensors DIP Switch Control

Performance

DALI DIM Function Microwave Occupancy Sensors DIP Switch Control

HDD01.pdf
