IP 20 Temperature Microwave Motion Sensor 220-240VAC Operate / 5 Years Warranty

Shenzhen HAISEN Technology Co.,Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

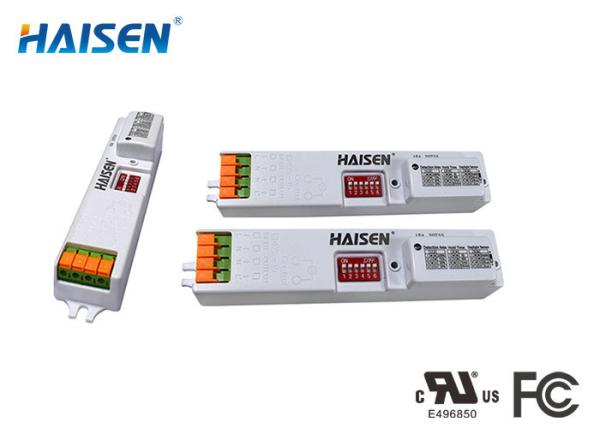

IP 20 Temperature Microwave Motion Sensor 220-240VAC Operate / 5 Years Warranty

Brand Name : HAISEN

Model Number : HD02S-6

Certification : CE TUV RED

Place of Origin : China

MOQ : 100PCS

Price : Negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100000pcs per month

Delivery Time : 1-3 days for sample order, 1-2 weeks for bulk order

Packaging Details : Bubble pack, paper flat, outer carton.

Operating voltage : 220~240 VAC 50/60Hz

Stand-by power : ≤0.5W

Microwave power : <0.3mW

Interfaces : 4-pole pluggable clamp terminal (L,N,N,L’) for 1.5mm2 cable

Mounting height : Max.6m(ceiling mounted);Max.3m(wall mounted)

Detection range : Max.ø14m(ceiling mounted);Max.10m(wall mounted)

Life time : 50,000 hours

Warranty : 5 years

Contact Now

IP 20 Temperature Microwave Motion Sensor 220-240VAC Operate / 5 Years Warranty


Features:

  • Slim Design For Panel /Tri-proof Light.
  • Stand-by power≤0.5W.
  • The Microwave motion sensor , covering a big area , can penetrate non-metalic objects , such as glass , wood , plastic and etc.
  • It's not affected by ambient temperature and dust , and widely applicated in corridor , fire exit , garage , warehouse , base - ment and other indoor lighting places.



Function:
ON-OFF function

Detailed Product Description

Operating voltage 220~240 VAC 50/60Hz
Switching capacity Max.400W(Control gear) Max.800W(Incandescent lamp)
Stand-by power ≤0.5W
Detection area 10%/50%/75%/100%
Hold time 5s/90s/5min/15min
Daylight threshold 2Lux/10Lux/50Lux/Disable
Microwave frequency 5.8GHz±75MHz
Microwave power <0.3mW
Wiring Method 4-pole pluggable clamp terminal (L,N,N,L’) for 1.5mm2 cable
Mounting height Max.6m(ceiling mounted);Max.3m(wall mounted)
Detection range Max.ø14m(ceiling mounted);Max.10m(wall mounted)
Detection angle 30°-150°
Operating temperature -20°C~+55°C
Design Slim Version
Size 144.4x28x27.5mm
Lifespan 50,000h @ Ta Full load
Warranty 5 years


Wiring diagram

Mechanical structure(mm)

DIP Switch Setting

Detection coverage

Demo

Application


ON OFF Control Function, Suitable For Tri-proof Lamp Installation, corridor, Stairwell, corridor Applications,etc
