Name: Dimmable 12VDC IP67 PIR Motion Sensor With Remote Control Setting
Brand: HAISEN
Price: 1 USD

Brand Name : HAISEN

Model Number : HP03VRH

Certification : CE

Place of Origin : China

MOQ : 100pcs

Price : Negotiable

Payment Terms : D/A, D/P, T/T

Supply Ability : 1-10pcs Samples Within 2-3 Days; Bulk Order Within 28 Days

Delivery Time : Standard Models Within 3 Weeks

Packaging Details : Packed in Bubble Bag, Reinforced With Paper Flat, Then Packed With Outer Carton

Color : White

Function : 0-10V dimming

IP Grade : IP67 of PIR Lens Part

Height : 12M max.

Contact Now

Dimmable 12VDC IP67 PIR Motion Sensor With Remote Control Setting

PIR Motion Sensor 12VDC Highbay For IP67 Dimmable Function With Remote Control

Operating Voltage	10.5-15V DC
Operating Current	>30mA
Microwave Frequency
Stand-by power	≤0.5W
Operating Current	<15mA
Programming	Remote Control HD05R
Detection Angle	Fresnel Lens ≤120° Fersnel Lens 360° Ceiling Mounted
Detection Range	Radius.<5m
Mounting Height	Max.12m/39ft Ceiling Mounted
Detection Area	25%/50%75%/100%
Hold Time	5s/30s/1min/3min/5min/10min/20min/30min
Daylight Threshold	2Lux/10Lux/30Lux/50Lux/80Lux/120Lux/Disable
Stand-by Period	0s/10s/30s/1min/5min/10min/30min/60min/+∞
Stand-by dimming	10%/20%/30%/50%
IP Rating	IP67
Operating Temperature	-35°C~+70°C
Warranty	3 Years

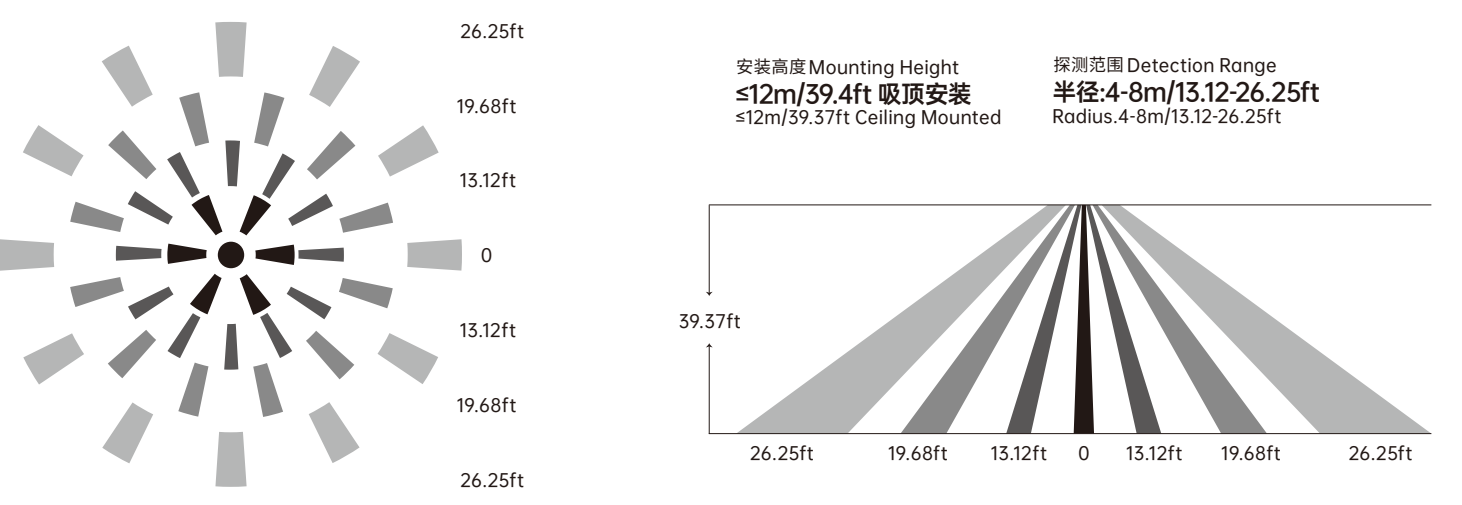

Detection Pattern

Dimmable 12VDC IP67 PIR Motion Sensor With Remote Control Setting

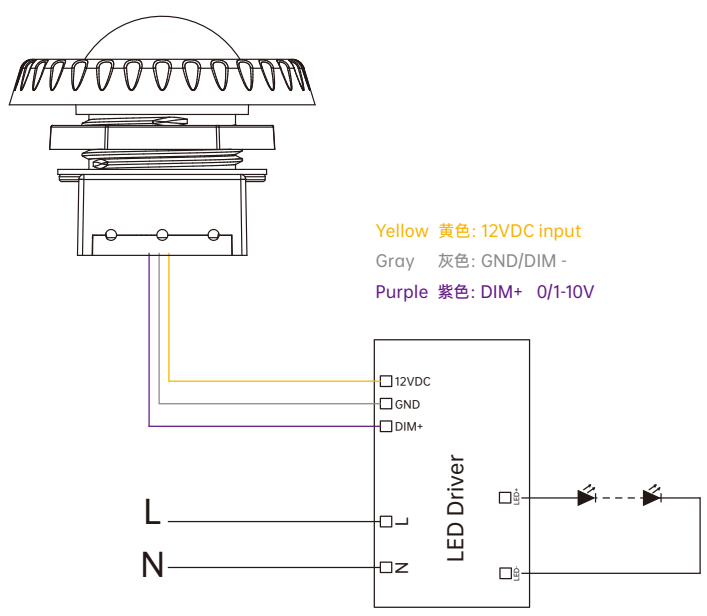

Wiring

Dimmable 12VDC IP67 PIR Motion Sensor With Remote Control Setting

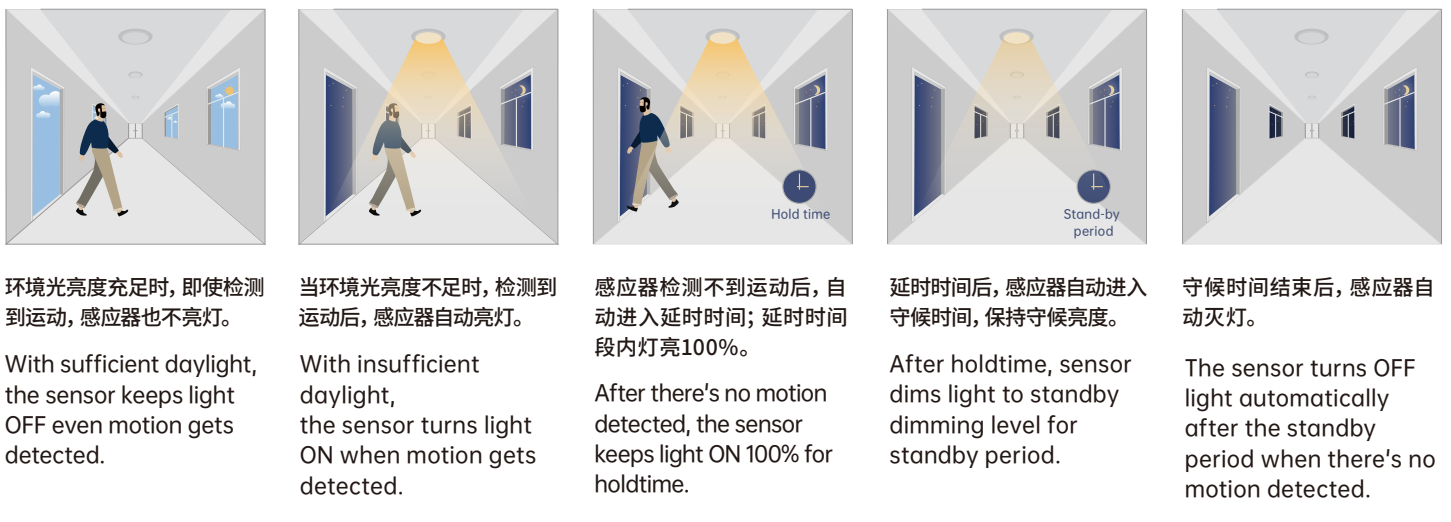

Performance

Dimmable 12VDC IP67 PIR Motion Sensor With Remote Control Setting
