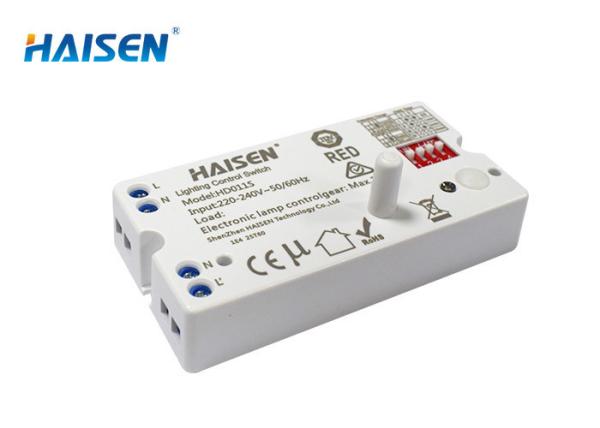

220VAC 240VAC Microwave PIR Detector Ceiling Mounting design

Name: 220VAC 240VAC Microwave PIR Detector Ceiling Mounting design
Brand: HAISEN
Price: 1 USD

Brand Name : HAISEN

Model Number : HD011S

Certification : RoHS TUV RED CE

Place of Origin : China

MOQ : 100PCS

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100,000pcs Per Month

Delivery Time : 1-3 days for sample order, 1-2 weeks for bulk order

Packaging Details : Bubble pack, paper flat, outer carton.

Opreating voltage : 220-240 VAC 50/60Hz

Switching capacity : Max.100W

Interfaces : 4-pole pluggable clamp terminal (L,N,N,L') for 24-14AWG cable

Hold time : 5s/1min/3min/10min

IP rating : IP20

Detection area : 50%/100%

Lifetime : 50000 hours

Daylight threshold : 30Lux/Disable

Contact Now

220VAC 240VAC Microwave PIR Detector Ceiling Mounting Design

Ceiling mounting on/off function microwave motion sensor with dip switch settings

Features:

On/off function.
Cylindrical antenna design.
Daylight threshold:30Lux/disable.
4-pole press-in terminal (L, N, N,L′),easy assembly.
Detection area, time delay and daylight threshold can be precisely set via DIP switch.
Lifetime:50000 hours.
Mounting heigh:max 2.5-4m/8.2-13.12ft.

Specifications:

Operating voltage	220-240 VAC 50/60Hz
Swtching capacity	Max.100w
Stand-by power	≤0.5w
Detection area	50%/100%
Hold time	5s/1min/3min/10min
Daylight threshold	30Lux/disable
Microwave frequency	5.8GHz±75MHz
Mounting height	Max.2.5-4m/8.2-13.12ft
Detection range	Max.12m/39.36ft
Opreating temperature	-20℃—+60℃
IP rating	IP 20
Lifetime	50000 hours
Certificate	SAA,TUV,RED,CE

Warranty of 5 years Daylight sensor Detection area

Hold time ON/OFF
Wiring diagram:
4-pole pluggable clamp terminal (L,N,N,L') for 24-14AWG cable

Dimensions:
size 76.9*39.9*27.7mm

Detection coverage:
Max.12m(ceiling mounted);Max.6m(wall mounted)

HD011S.pdf
