IC Solution Dimming In Slim Design Microwave Sensor 12VDC

  • 1
  • 2
  • 3

Brand Name : HAISEN

Model Number : HDI02-01VR

Certification : none

Place of Origin : China

MOQ : 100pcs

Price : Negotiable

Payment Terms : D/A, D/P, T/T

Supply Ability : 1-10pcs Samples Within 2-3 Days; Bulk Order Within 28 Days

Delivery Time : Standard Models Within 3 Weeks

Packaging Details : Packed in Bubble Bag, Reinforced With Paper Flat, Then Packed With Outer Carton

Color : White

Input : 12VDC

Function : Dimming

Programming : Remote Control

Contact Now

New Item 12VDC IC Solution Dimming In Slim Design Microwave Sensor

Features

Slim design in IC solution

Powered by 12VDC output

0-10V Dimming

Remote control

Parameter Table

Operating voltage 7-15V, 12VDC Typical
Operating Current ≤30mA
Stand-by power ≤0.5W
Output Control 0-10V Dimming
Detection area 25%/50%/75%/100%
Hold time 5S/30S/1min/10min/20min/30min
Daylight threshold 2Lux/10Lux/30Lux/50Lux/80Lux/120Lux/Disable
Stand-by period 0s/10s/30s/1min/5min/10min/30min/+∞
Stand-by dimming level 10%/20%/30%/50%
Microwave frequency 5.8GHz±75MHz
Microwave power <0.3mW
Mounting height 2.5-4.5m
Detection range Radius 3-7m
Detection angle 150° Wall Mounted,360° Ceiling Mounted
Operating temperature -35°C~+70°C
IP rating IP20
Life time 50,000 hours

Default Program

Detection area 100%

Holdtime 5S

Daylight Disable

Standby period 0S

Standby dimming level 10%

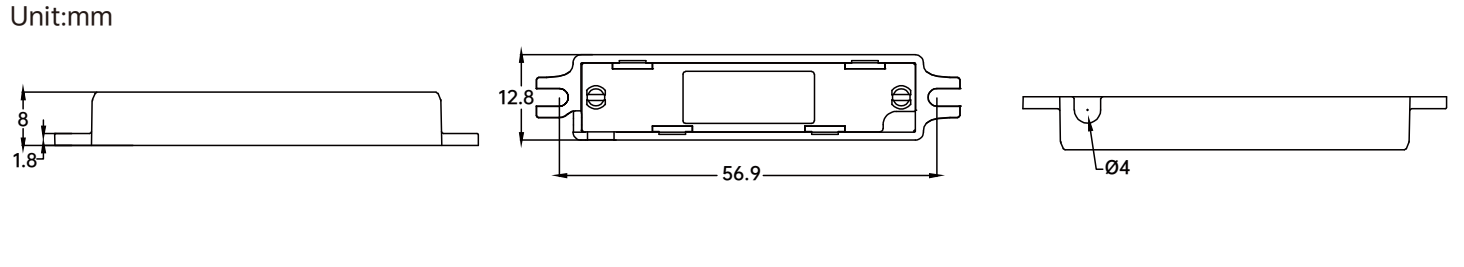

Size

IC Solution Dimming In Slim Design Microwave Sensor 12VDC

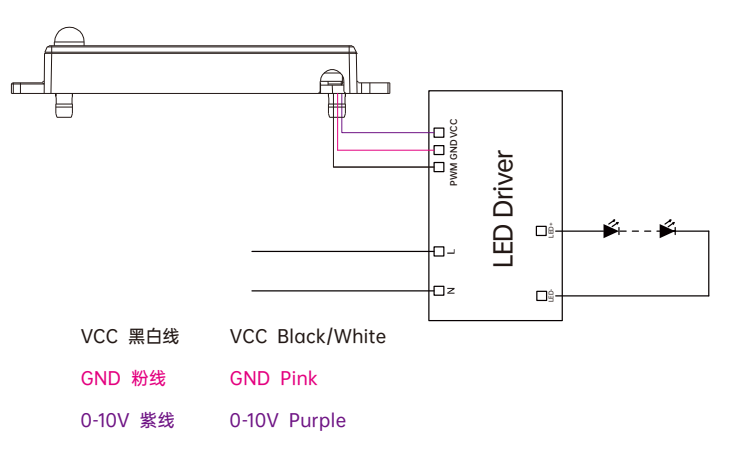

Wiring

IC Solution Dimming In Slim Design Microwave Sensor 12VDC

Function Performance

* Daylight Threshold

With sufficient daylight, even when motion detected, light remains OFF.

* Bi-Level Dim

When motion is detected, the sensor will switch on the light to 100% brighteness.

After people leave the detection area, light remains 100% brightness for the hold time.

After holdtime, sensor dims light to standby dimming level (10% 20% 30% 50%) and keeps for a standby period.

After standby period,sensors turns OFF the light.

* ON/OFF

When motion is detected, the sensor will switch on the light to 100% brighteness.

After people leave the detection area, light remains 100% brightness for the hold time.

Preset standby period as 0S, sensor turns OFF the light after holdtime.

Specification Download:

HDI02-01VR 12VDC input IC solution Dimming.pdf
